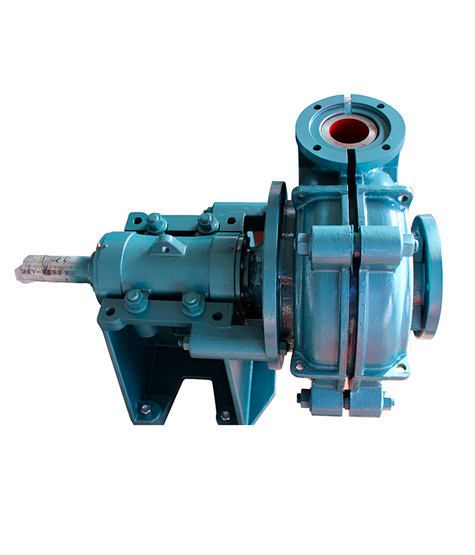

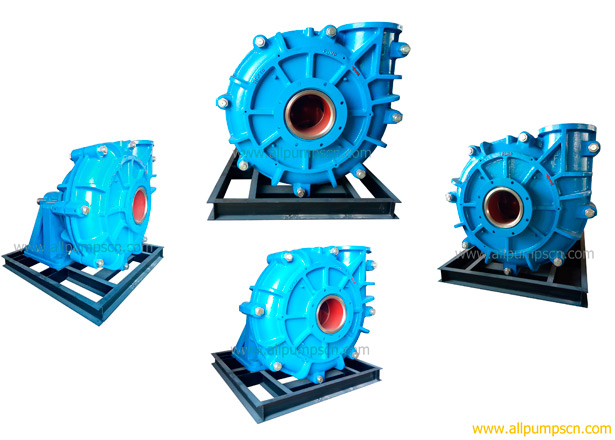

16inch x 14inch Aggregate Processing Rough Solids Conveying Slurry Pump

Name: 16inch x 14inch Aggregate Processing Rough Solids Conveying Slurry Pump
Brand: All Pumps Machinery Company Limited.
Rating: 4.8 (6 reviews)

It is specially designed for mining, beneficiation and metallurgical industrial units to deal with liquid chemical mud, mud, lime, fly ash, gravel and mineral products. Applications range from transfer to filter press feeding and blasting.

Get The Price PDF Download

Features of 16''x14'' Aggregate Processing Rough Solids Conveying Slurry Pump

1. Impeller: high chromium alloy and natural rubber impeller are completely interchangeable. Impellers can be produced from 2 to 8 as needed. It can also provide high efficiency, high lift and OEM design;

2. Liner: high chromium alloy and natural rubber liner are completely interchangeable. The lining that is easy to replace is fixed on the shell with bolts instead of glue, so as to facilitate reliable connection and maintenance;

3. Bearing components: large diameter shaft, short overhang, minimize deflection, and help to prolong bearing life. Only four through bolts are needed to fix the box housing in the frame;

4. Pump casing: cast iron or ductile iron half casing with external stiffeners provides high working pressure capacity and additional safety measures;

5. Sealing form: packing seal, impeller seal and mechanical seal are available;

6. Frame base: a very solid integrated frame supports the barrel bearing and shaft assembly. An external impeller adjustment mechanism is set under the bearing seat to facilitate the adjustment of impeller clearance.

Want to learn more features about China horizontal slurry pump, contact All Pumps Machinery.

Specification of 16''x14'' Aggregate Processing Rough Solids Conveying Slurry Pump

MODEL	MAX	CAPACITY	HEAD	SPEED	MAX.Eff	NPSH
MODEL	POWER (KW)	(m³/h)	H(m)	n(r/min)	η%	(m)
ZH-1.5×1B	15	12.6~28.8	6~68	1200~3800	40	2~4
ZH-2×1.5B	15	32.4~72	6~58	1200~3200	45	3.5~8
ZH-3×2C	30	39.6~86.4	12~64	1300~2700	55	4~6
ZH-4×3C	30	86.4~198	9~52	1000~2200	71	4~6
ZH-4×3D	60	86.4~198	9~52	1000~2200	71	4~6
ZH-6×4D	60	162~360	12~56	800~1550	65	5~8
ZH- 6×4E	120	162~360	12~56	800~1550	65	5~8
ZH- 8×6E	120	360~828	10~61	500~1140	72	2~9
ZH-10×8ST	560	612~1368	11~61	400~850	71	4~10
ZH-12×10ST	560	936~1980	7~68	300~800	82	6
ZH- 14×12ST	560	1260~2772	13~63	300~600	77	3~10
ZH- 16×14ST	560	1368~3060	11~63	250~550	79	4~10
ZH- 16×14TU	1200	1368~3060	11~63	250~550	79	4~10
ZH- 18×16ST	560	2160~5040	8~66	200~500	80	4.5~9
ZH- 18×16TU	1200	2160~5040	8~66	200~500	80	4.5~9
ZH- 20×18TU	1200	2520~5400	13~57	200~400	85	5~10
