1. Modular design, easy maintenance, high standardization, low backup cost;
2. The standard closed 5-blade and open 3-blade non-clogging impellers have a wide selection range;
3.27% chrome alloy cemented carbide, thick rubber and polyurethane pump lining all available and can be replaced with each other;
4. Famous brand bearing parts, improve reliability, prolong bearing life and reduce lubrication costs;
5. Reliable shaft sealing, such as gland packing seal, expeller seal or mechanical seal are optional.

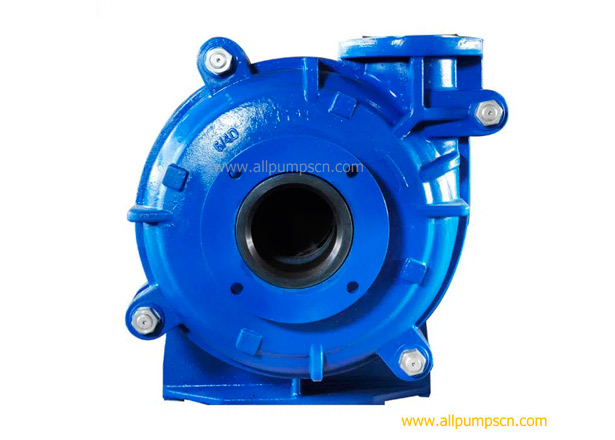

Need a reliable China horizontal slurry pump? Reach out to All Pumps Machinery to learn more about its features.
MODEL | MAX | CAPACITY | HEAD | SPEED | MAX.Eff | NPSH |
POWER | ||||||
(KW) | (m3/h) | H(m) | n(r/min) | (η%) | (m) | |
ZHR-6×4D | 60 | 144~324 | 12~45 | 800~1350 | 65 | 3~5 |
ZHR-6×4E | 120 |
