3inch x 2inch C Gold Leaching Cyanide Slurry Pump

ZHR rubber lined slurry pump is a cantilever, horizontal, centrifugal, natural rubber lined slurry pump, which is suitable for mining, mineral processing, metallurgy, coal, electric power, building materials and other industrial departments to transport mud with strong corrosion or little abrasion, and no sharp edges.

heavy duty slurry pump
heavy duty sludge pump
horizontal centrifugal slurry pump
horizontal slurry pump

Features of 3''x2'' C Gold Leaching Cyanide Slurry Pump

1. Modular design, easy maintenance, high standardization, low backup cost;

2. Famous brand bearing parts, improve reliability, prolong bearing life and reduce lubrication costs;

3. The standard closed 5-blade and open 3-blade non-clogging impellers have a wide selection range;

4. 27% chrome alloy cemented carbide, thick rubber and polyurethane pump lining all available and can be replaced with each other;

5. Reliable shaft sealing, such as gland packing seal, expeller seal or mechanical seal are optional.

Interested in purchasing a China horizontal slurry pump? Call All Pumps Machinery now and discover its exceptional features.

Specification of 3''x2'' C Gold Leaching Cyanide Slurry Pump

MODELMAXCAPACITYHEADSPEEDMAX.EffNPSH
POWER
(KW)(m3/h)H(m)n(r/min)(η%)(m)
ZHR-3×2C3036~75.613~391300~2100552~4


Slurry Pump Structural Details



Slurry pumps Curve Chart

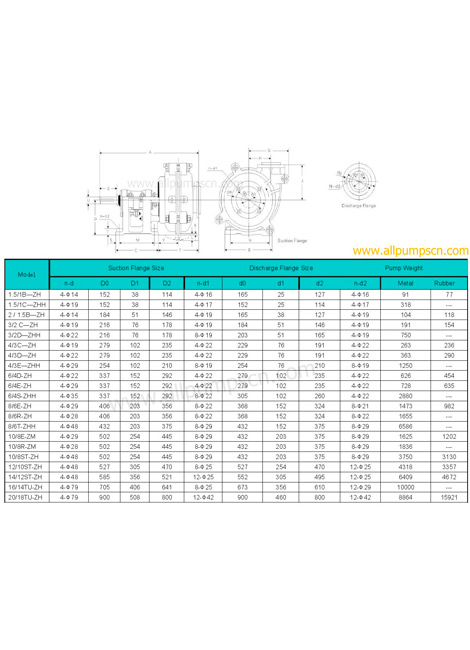

Dimension of 3''x2'' C Gold Leaching Cyanide Slurry Pump
