3inch x 2inch C Settling Slurries Coarser Particles Handling Slurry Pump

3x2C settling slurries coarser particles handling slurry pump that treat coarse particles can withstand wear caused by abrasive, erosion and corrosion of materials. They are designed to allow sometimes very large abrasive particles to pass through.

Therefore, a wider and heavier impeller is needed to adapt to the passage of large particles.


heavy duty slurry pump
heavy duty sludge pump
horizontal slurry pump
horizontal centrifugal slurry pump

Features of 3''x2''C Settling Slurries Coarser Particles Handling Slurry Pump

1. Modular design, easy maintenance, high standardization, low backup cost;

2. The standard closed 5-blade and open 3-blade non-clogging impellers have a wide selection range;

3. 27% chrome alloy cemented carbide, thick rubber and polyurethane pump lining all available and can be replaced with each other;

4. Famous brand bearing parts, improve reliability, prolong bearing life and reduce lubrication costs;

5. Reliable shaft sealing, such as gland packing seal, expeller seal or mechanical seal are optional.

For more selection of China horizontal slurry pump, inquiry now!

Specification of 3''x2''C Settling Slurries Coarser Particles Handling Slurry Pump


MODELMAXCAPACITYHEADSPEEDMAX.EffNPSH
POWER (KW)(m3/h)H(m)n(r/min)η%(m)
ZH-1.5×1B1512.6~28.86~681200~3800402~4
ZH-2×1.5B1532.4~726~581200~3200453.5~8
ZH-3×2C3039.6~86.412~641300~2700554~6

Slurry Pump Structural Details



Slurry pumps Curve Chart

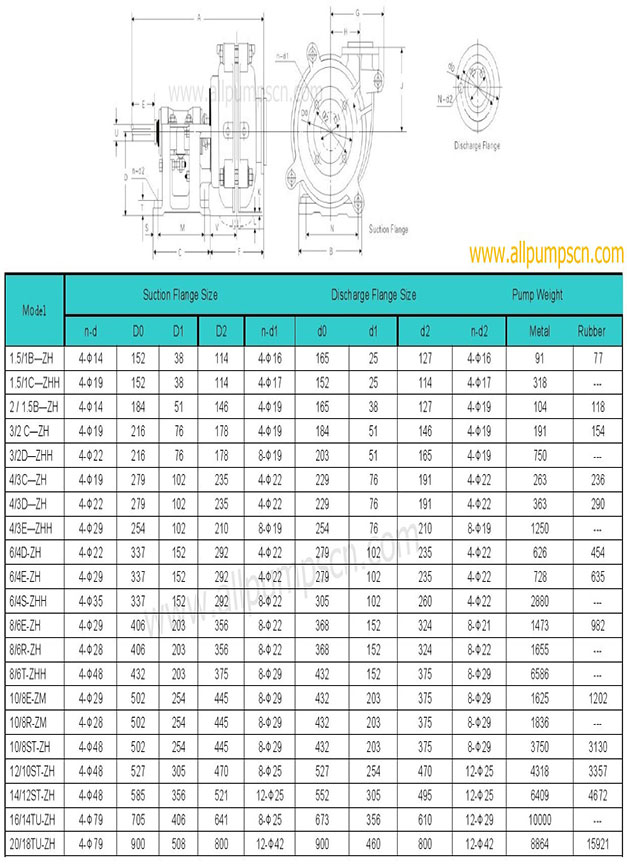

Dimension of 3''x2''C Settling Slurries Coarser Particles Handling Slurry Pump
