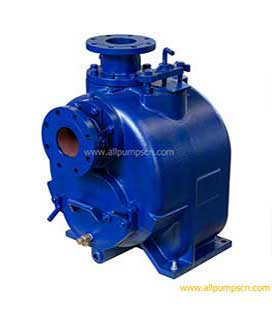

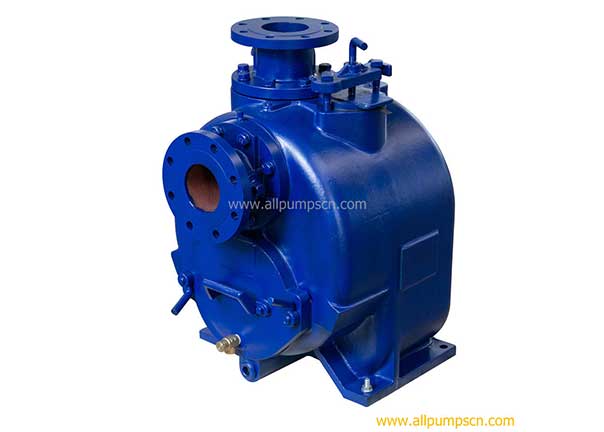

All Pumps Machinery Supply solids handling china self priming trash pumps with two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Bulk buy from All Pump Machinery,one of the top self priming centrifugal pump manufacturers.
MODEL | Inlet/Outlet Flange (inch) | R.P.M (R/MIN) | Max.Flow (m3/H) | Max.Head (m) | Max.Solids Size (mm) |
ST-2 | 2'' x 2'' | 1150-2900 | 46 | 36 | 44.45 |
ST-3 | 3'' x 3'' | 650-2150 | 107 | 35 | 63.5 |
ST-4 | 4'' x 4'' | 650-1950 | 163 | 36 | 76.2 |
ST-6 | 6'' x 6'' | 650-1550 | 330 | 33 | 76.2 |
ST-8 | 8'' x 8'' | 650-1350 | 600 | 34 | 76.2 |
ST-10 | 10'' x 10'' | 650-1450 | 775 | 40 | 76.2 |
ST-12 | 12'' x 12'' | 650-1250 | 1275 | 42 | 76.2 |
SU-3 | 3'' x 3'' | 850-2150 | 85 | 62 | 20.63 |
SU-4 | 4'' x 4'' | 850-2150 | 148 | 58 | 28.57 |
SU-6 | 6'' x 6'' | 850-1950 | 308 | 57 | 31.75 |
The solids handling Self Priming Electric Trash Sewage Pump uses the principle of a centrifugal pump to mix the liquid and discharge the gas through the special structure, so as to realize the vacuum extraction so that the inlet pipe achieves the purpose of absorbing the liquid into the vacuum state in the inlet pipe.
External removable flap valve.
Suction and exhaust connection.
Removable cover plate and wear plate.
Detachable rotating assembly.
Externally adjustable clearance.
Double station instrument.
